Original DSE8660 MKII | Auto Transfer Switch & Mains (Utility) Control Module

DSE
Availability:

Out of stock


OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6″ x 7.2″ x 2.0″)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3″)

WEIGHT
0.88kg

PRODUCT VARIANTS
8660-02 – 8660 MKII Auto Transfer Switch & Mains (Utility) Control Module (Ct, Rtc)

$1,529.99

Out of stock

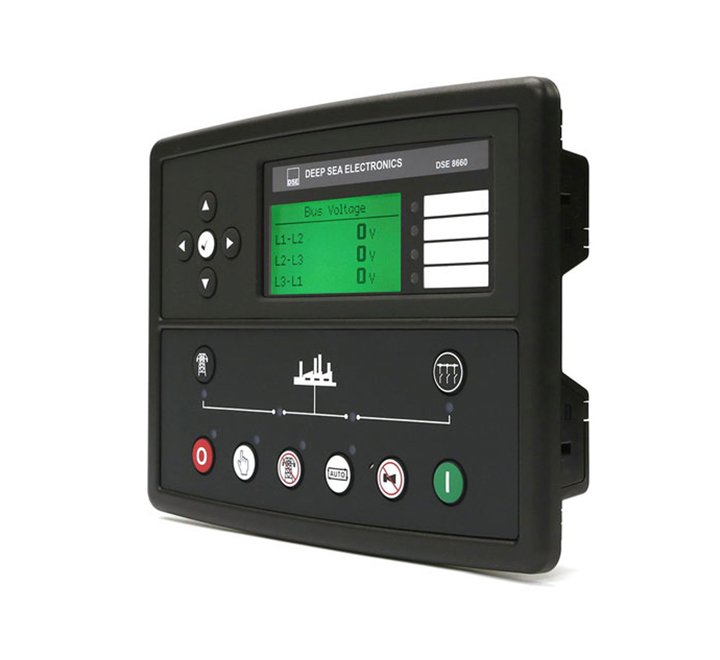

The DSE8660 MKII is the latest and most advanced Auto Transfer Switch & Mains (Utility) Control Module within the DSE synchronising and load sharing control module range. Developed alongside the DSE8610 MKII this control module provides industry-leading features and benefits for the most complex grid type generator installations.

BRANDS

DSE

Technical Specifications

Key Features Key Benefits
Multiple mains (utility) capability (with additional module). To monitor alternative mains supplies to ensure generator power is supplied at the exact time required.
Mains (Utility) failure detection, mains (utility) power monitoring (kW, kV Ar, kV A & pf) monitoring, mains (utility) decoupling protection, mains (utility) kW export protection. Gives full mains (utility) back-up and provides no break synchronisation that includes peak lopping and peak shaving options with mains (utility) power monitoring.
Sequential set start. Allows control over the number of sets starting at any one time. E.g. All start or start on load demand.
Configurable inputs/outputs (12/8). Provides multiple installation options.
Integral PLC editor. Ensures additional applications are easily integrated into the system.
Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection. Provides clear accurate power measurement information.
Data logging (USB Memory Stick). Provides current and historical status information.
DSE Configuration Suite PC Software. Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
Tier 4 CAN engine support. Ensures the control module can be used with the latest in modern electronic engine technology.

Details

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT
460 mA at 12 V, 245 mA at 24 V

MAXIMUM STANDBY CURRENT
375 mA at 12 V, 200 mA at 24 V

CHARGE FAIL/EXCITATION RANGE
0 V to 35 V

OUTPUTS

OUTPUT A (FUEL)
15 A DC at supply voltage

OUTPUT B (START)
15 A DC at supply voltage

OUTPUTS C & D
8 A AC at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H,I & J
2 A DC at supply voltage

GENERATOR & BUS

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK-UP
VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)

MINIMUM LOAD IMPEDANCE
1000Ω
Fully isolated

GAIN VOLTAGE
0 V to 10 V DC
Fully isolated

OFFSET VOLTAGE
+/- 10 V DC
Fully isolated

BUILT-IN AVR CONTROL

MINIMUM LOAD IMPEDANCE
1000Ω
Fully isolated

GAIN VOLTAGE
0 V to 10 V DC
Fully isolated

OFFSET VOLTAGE
+/- 10 V DC
Fully isolated
