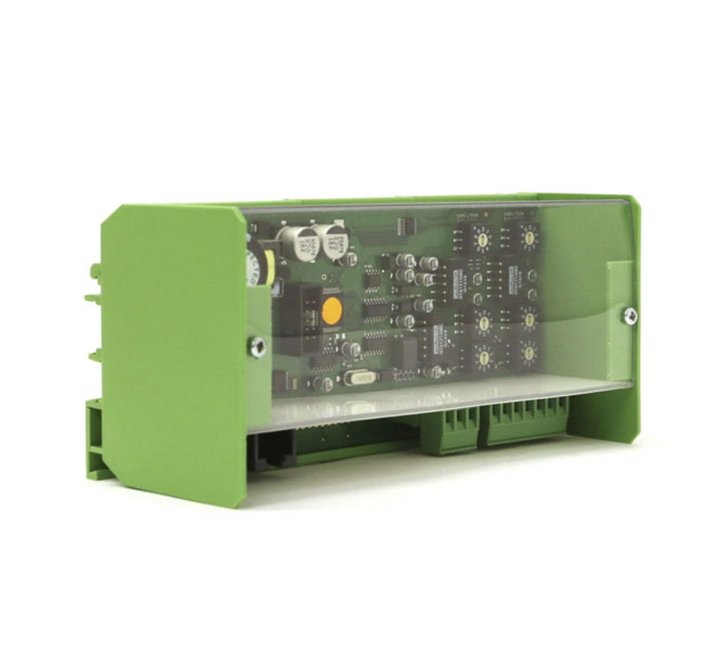

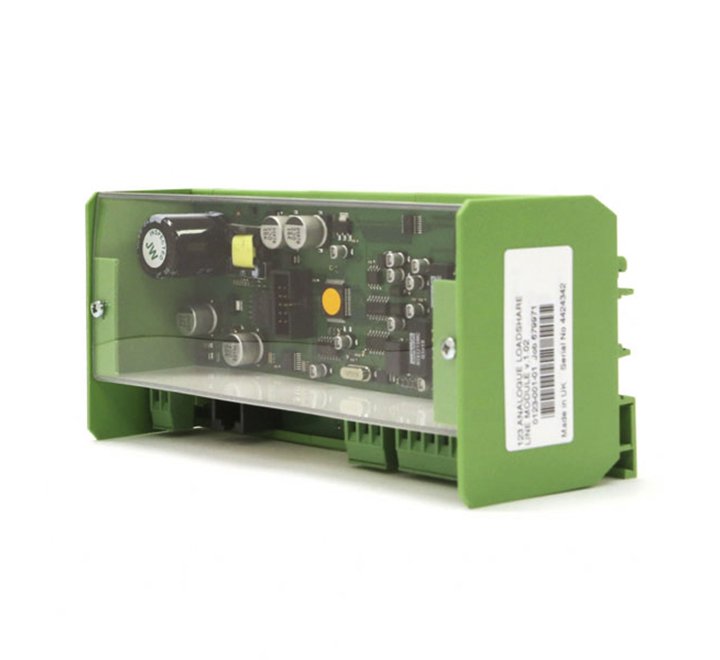

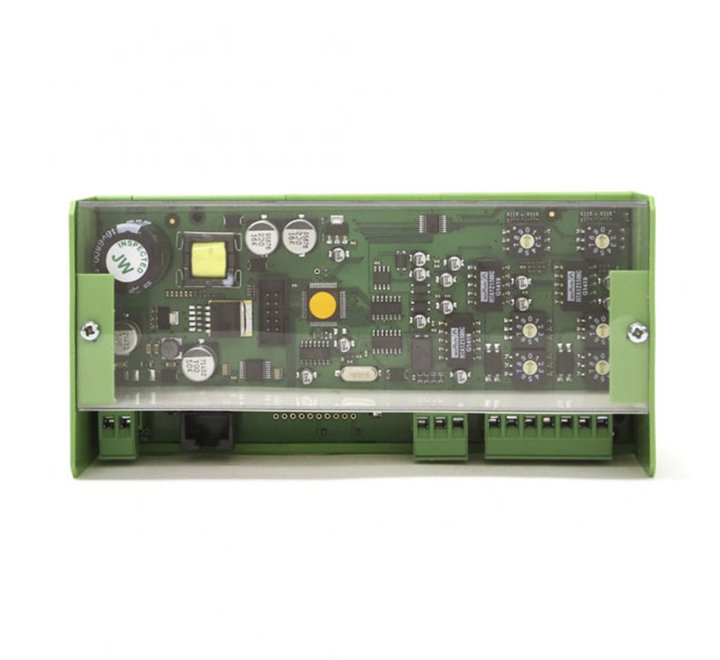

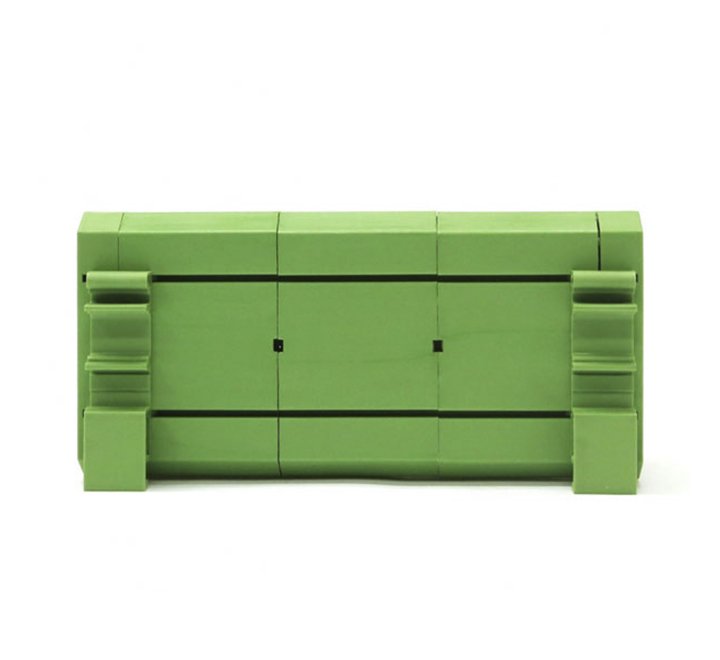

Original DSE123 | Analogue Load Share Lines Interface
Out of stock
161 mm x 78 mm x 76 mm (6.3” x 3.1” x 3.0”)
WEIGHT
0.3kg
PRODUCT VARIANTS
0123-01 – 123 Analogue Loadshare Lines Interface
Call for Quote for international purchases!

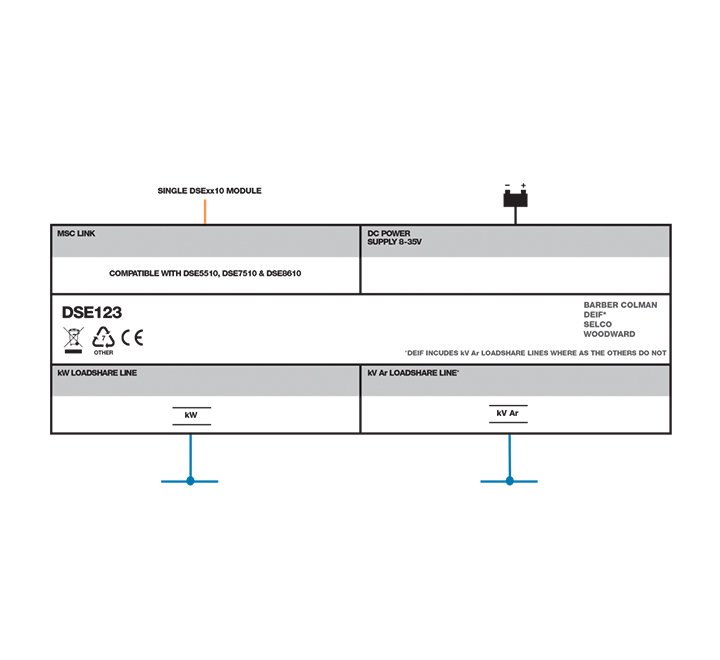

The DSE123 is an intelligent device that allows DSE load share modules to communicate with non-DSE control modules that are communicating over universal analogue load share lines. This means that DSE load share controls can be added to non-DSE load share systems.
This flexibility allows existing systems to be expanded when the original controllers are no longer available.
| BRANDS | DSE |
|---|---|
| DSE123 | 0123-01 Load Share Lines Interface, 0123-02 Load Share Lines Interface Cummins |
Technical Specifications
| Key Features |
| Power on/status LED. |
| Plug & socket connections. |
| Simple switch configuration. |
| Allows DSE 5510/7510 and 8610 modules to be integrated to existing non-DSE systems. |
| Compatible with DEIF, Delco, Woodward and Barber Colman. |
| kW & kV Ar load sharing. |
Details
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
150 mA at 12 V, 80 mA at 24 V
MAXIMUM STANDBY CURRENT
150 mA at 12 V, 80 mA at 24 V
