Universal
ADD104-12 | Actuator
- Save energy costs by regulating motor speed according to load requirements. GAC components are the best way to govern a generator where tight control of engine speed is desired, regardless of engine load.
- ADD104 -12 | (Packard Connector / Lever / Briggs and Stratton / Kohler / Small 2 Cyl. GAC Compatible V-Style Engines: EEG6500 (Digital) – ECC328 (No MSP Required) – ESD2244 – ESD2402 ESD5120 – ESD5500-II – ESD5520E – ESD5570
- Features: A low cost universal actuator, designed for small gas engines, fast response <25 msec, small size, easy installation with minimal installation time, increased operational integrity and safety.
- The GAC high-performance speed control system is application-based and consists of four main components: handwheel, magnetic speed pad, speed controller, and an actuator.
- Application in: military grade equipment, rail, marine, industrial, heavy machinery, gaseous engines, power generation, oil and gas and much more … GAC is ISO 9001 certified | We carry the full line of Governors America Corp products, email Thunder Parts your requirements!
Call for Quote for international purchases!
SKU: ADD104-12 -
-
Universal
ADD180G | Actuator
- Packard Connector with Mating Connector EC1300
- Includes KT188 Installation Kit
- For DEUTZ 1012 and 1013/2012 and VOLVO 520/720 engines
- Replaces existing mechanical governors
- Spring balance system that allows fuel rack to return
Call for Quote for international purchases!
SKU: ADD180G -
AVR | Mcpherson Controls
ADVR-054 | Mcpherson Controls
Replaces SS-053 & ADVR-053
Self Excited, 5 amp automatic voltage regulator.
The ADVR-54 is a compact size, robust and high reliable voltage regulator. Innovative heat sink significantly increases cooling efficiency. Working on 220/380/440/480 Vac with selectable switches. Capable soft start voltage ramping, over excitation protection and a digital low frequency protection circuit, preventing thermal drift. EMI suppression and automatic shut off output when voltage sensing is lost, with a built-in high capacity fuse.
Call for Quote for international purchases!
SKU: ADVR054 -
AVR | Mcpherson Controls
ADVR-073 | Mcpherson Controls
The ADVR-073 is an advance (Hybrid Analog/Digital Voltage Regulator) design for general-purpose isochronous applications. The ADVR-073 uses an reliable CPU (Central Processing Unit) in its design. This eliminates complex analogue components and circuits that are inherently over sensitive to temperature eliminating voltage instabilities and drift. In addition, we added over excitation and loss of sensing shutdown protections, with matching U/F, O/E LED indicator lights. Consequently, this AVR prevents the generator from excitation overload, preventing exciter and regulator damage. It is easy to install and flexible for use in both shunt type and generators with auxiliary windings.
Call for Quote for international purchases!
SKU: ADVR073 -
AVR | Mcpherson Controls
ADVR-12 | Mcpherson Controls
Use on CAT Gen with PMG, and Shunt. The ADVR-12 is a totally new hybrid 12 Amp universal voltage regulator with a comparable footprint as the Basler* AVC63-12 and AVC125-10, CAT* VR6, KATO* K65-12B and K125-10B, and the Leroy Somer* 202-8634, and many other. To simplify installation, voltage sensing without PT’s up to 520 volts was added, also new DIP & TRIM adjustment compatible with many automatic paralleling and PF controllers in the market. The new CPU design makes the ADVR-12 exceedingly stable, however keeping the analog power circuit for fast response. Single Phase or Three Phase Sensing & Power Input Voltage Regulation < ±0.5% 220/380/440/480VAC Programmable Input IP Switch Selectable 50/60Hz Multiple Excitation System Compatibility: SHUNT, AU X, PMG Inverse-time Over Excitation Protection Under Frequency Protection Soft Start Voltage Ramping EMI Suppression Built-in High Capacity Protection Fuse.
The ADVR-12 12 Amp Universal Automatic / Digital Voltage Regulator is a Compatible Replacement for the Caterpillar 3516 – VR6 – VR3 – CDVR – K125-10B – K65-12B Basler Digital AEC63-7 – AVC63-12A – 1DBT63-7 – DECS-100-B15 – DECS-200-2L – Digital DM110 – KR4FF. GEC ALSTHOM C10 / 120 – DX21. COSIMAT N/N3 14392/04.92. Marathon DVR2000 – DVR2000E – PM100 – PM200 – PM300. ABB 1000-7 – EA63-5 – GX300.
Call for Quote for international purchases!
SKU: ADVR12 -
AVR | Mcpherson Controls
ADVR-16 | Mcpherson Controls
TO REPLACE THE SS16A-2
Universal 16 Amp 1/2 Wave Self Excited Automatic Voltage Regulator can be used in parallel operation.
Compatible with Mecc Alte* UVR6, Marelli Motori* M40FA640A-MARK I and Caterpillar* AVR Marelli M40FA640A – M16FA650A – M16FA655A – M25FA600A – M16FA600A – M25SA600A – Basler BECS200 – KR4FFX – KR4 – KR7 – AEC63-7 – Caterpillar 3516B – VR65 – VR6 – 85Z 11892 – 3406 – VR3
Call for Quote for international purchases!
SKU: ADVR16 -
AVR | Mcpherson Controls
ADVR-2200M | Mcpherson Controls
Replaces Marathon DVR-2000 Series
ADVR-2200M is an Digital/Analog hybrid voltage regulator that substitutes certain Marathon DVR applications. This regulator can work with either single or three phase sensing and PMG. The ADVR-2200M as protection against over excitation, as well PF (power factor) correction inputs. And also as capabilities for DROOP Parrelleling.
Call for Quote for international purchases!
SKU: ADVR2200M -
AVR | Mcpherson Controls
ADVR-250 | Mcpherson Controls
Replaces Marathon DVR-2000 Series
Analog／Digital，Single-ph ase detection，Excitation Current 3.5 Amps. For use in brushl ess, self-excited (shunt) ge nerators Compatible with Leroy Somer* R250/R230, AVR
Call for Quote for international purchases!
SKU: ADVR250 -
Universal
ALN Series | Actuator
(12VDC (or 24VDC) / 6.5 lbf. [3.0kg] / 0.25 ft-lb [0.34J] Work / Male Push-On Terminals)
The linear actuators are designed to provide highly accurate precise positioning for a close loop control with a minimum number of moving parts, which prolong the life of the actuator. The linear actuators provide a quick response time and can be use for different applications. The fast-acting actuator is completely self-contained. It requires only a firm mounting surface, appropriate linkage to the fuel control and electrical connection to the speed control unit. The actuators are not gravity sensitive and therefore can operate in any position. The actuators are compatible with GAC’s standard speed control units.
Call for Quote for international purchases!
SKU: ALNS -
Universal
ALN025 | Actuator
- Low Cost, Compact Design
- Fast Response
- Precise Repeatability
- Provide a quick response time and can be used for many different applications
- Completely self-contained
- Integral return spring returns output shaft to zero fuel position if battery power is lost
- Operate in any position, are not gravity sensitive
- Compatible with GAC’s standard speed control units
- Maintenance Free
- Requires only a firm mounting surface, appropriate linkage to the fuel control and electrical connection to the speed control unit
Call for Quote for international purchases!
SKU: ALN025 -
Universal
ALN050 | Actuator
- Low Cost, Compact Design
- Fast Response
- Precise Repeatability
- Provide a quick response time and can be used for many different applications
- Completely self-contained
- Integral return spring returns output shaft to zero fuel position if battery power is lost
- Operate in any position, are not gravity sensitive
- Compatible with GAC’s standard speed control units
- Maintenance Free
- Requires only a firm mounting surface, appropriate linkage to the fuel control and electrical connection to the speed control unit
Call for Quote for international purchases!
SKU: ALN050 -
Engine Mounted
ALR Series | Actuator
The ALR Series Electronic Linear Integral Actuators are designed to mount directly to the engine’s fuel pump in place of the electronic stop solenoids. The ALR Series Electronic Linear Actuator exhibits high quality construction and are designed for high temperature operation. GAC’s unique linear electromechanical technology provides proportional actuator movement, based on actuator coil current. GAC utilizes precision linear ball bearings, instead of bushings, and a minimum number of moving parts to improve response, precision, and reliability.
Call for Quote for international purchases!
SKU: ARLS -
Throttle Body
ATB T1 Series | Actuator
The ATB Series integral throttle body electric actuators are designed to control the air or air/fuel mixture to a gaseous-fueled engine. The design baseline for the ATB Series incorporates fast response and proven reliability to allow for efficient and precise control. The ATB Series actuator directly drives the throttle plate with internal return springs, insuring that the throttle plate returns to the minimum fuel position when the actuator becomes de-energized.
Call for Quote for international purchases!
SKU: ATB251T1N -
Throttle Body
ATB T2 Series | Actuator
The ATB Series integral throttle body electric actuators are designed to control the air or air/fuel mixture to a gaseous-fueled engine. The design baseline for the ATB Series incorporates fast response and proven reliability to allow for efficient and precise control. The ATB Series actuator directly drives the throttle plate with internal return springs, insuring that the throttle plate returns to the minimum fuel position when the actuator becomes de-energized.
Call for Quote for international purchases!
SKU: ATBT2 -
Throttle Body
ATB T3 Series | Actuator
The ATB Series integral throttle body electric actuators are designed to control the air or air/fuel mixture to a gaseous-fueled engine. The design baseline for the ATB Series incorporates fast response and proven reliability to allow for efficient and precise control. The ATB Series actuator directly drives the throttle plate with internal return springs, insuring that the throttle plate returns to the minimum fuel position when the actuator becomes de-energized.
Call for Quote for international purchases!
SKU: ATBT3 -
Throttle Body
ATB T4 Series | Actuator
The ATB Series integral throttle body electric actuators are designed to control the air or air/fuel mixture to a gaseous-fueled engine. The design baseline for the ATB Series incorporates fast response and proven reliability to allow for efficient and precise control. The ATB Series actuator directly drives the throttle plate with internal return springs, insuring that the throttle plate returns to the minimum fuel position when the actuator becomes de-energized.
Call for Quote for international purchases!
SKU: ATBT4 -
AVR | Generic Replacements
AVR AS440 | Generic
- SENSING INPUT: Voltage Jumper selectable: 100-130 Vac 1 phase or 190-264 Vac 1 phase
- FREQUENCY 50-60 Hz nominal
- OUTPUT: Voltage 82 V d.c. @ 200 V a.c.
- Current continuous 4A – Resistance 15 ohms min
- REGULATION: +/- 1.0% – Generic replacement – 2 year warranty
Call for Quote for international purchases!
SKU: AS440-G -
AVR | Generic Replacements
AVR AS480 | Generic
SENSING and POWER INPUT
- Voltage: 100-264 Vac 1 phase
- Frequency: 50-60 Hz Nominal
OUTPUT
- Voltage: 82 Vdc @ 200 Vac power input
- Voltage: 45 Vdc @ 110 Vac power input
- Current: Continuous 5A
REGULATION
- +/- 1.0%
THERMAL DRIFT
- 0.03% per deg. Change in AVR ambient
Call for Quote for international purchases!
SKU: AS480G -
-
AVR | Generic Replacements

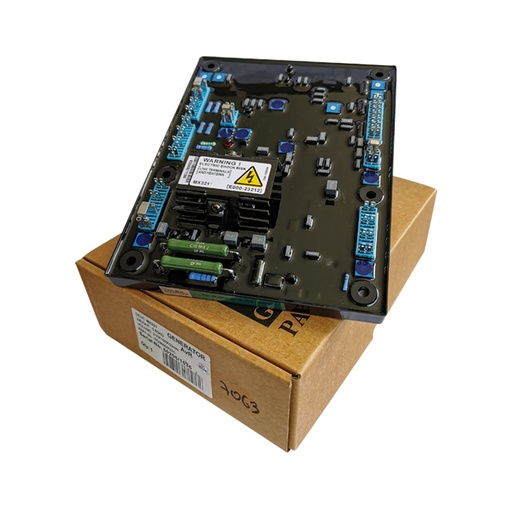

AVR MX321 | Generic
SENSING INPUT
Voltage: 190 – 264V ac max, 2 or 3 phase
Frequency: 50 – 60 HZ nominal
POWER INPUT (PMG)
Voltage: 170-220V ac max, 3 phase, 3 wire
Current: 3A/phase
Frequency: 100 – 120 Hz nominal
OUTPUT
Voltage: max 120V dc
Current: continuous 3.7 A
Intermittent 6A for 10 secs.
Resistance: 15 ohms minimum
REGULATION: +/- 0.5% RMS with 4% engine governing
Call for Quote for international purchases!
SKU: MX321G -
AVR | Generic Replacements

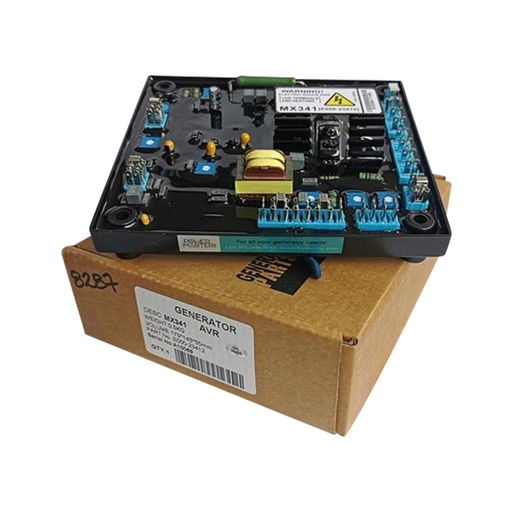

AVR MX341 | Generic
- SENSING INPUT
Voltage: 190- 264V ac max, 1 phase, 2 wire
Frequency : 50 – 60 Hz nominal
POWER INPUT (PMG)
Voltage 140-220V ac max, 3 phase, 3 wire
Current: 3A/phase
Frequency: 100 120 Hz nominal
OUTPUT
Voltage: max 120V dc
Current: continuous 2.7 A
Intermittent 6a for 10 secs.
Resistance: 15 ohms minimum
REGULATION: +/- 1%
Call for Quote for international purchases!
SKU: MX341G - SENSING INPUT
